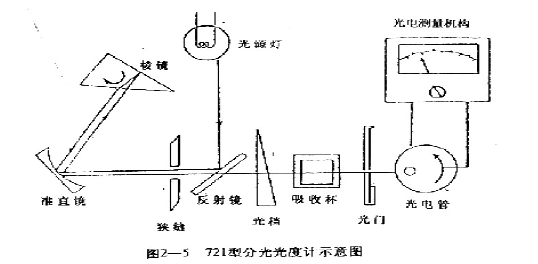

(1) Type 721 spectrophotometer (Figure 2-5)

This is a higher-level visible light spectrophotometer that uses a photocell as a light receiver. A light source powered by a regulated power supply emits a steady white light. As shown in Figure 2-5. The light is thrown into the slit through the mirror, and then reflected into the prism by the collimating mirror. After the dispersion occurs in the prism, the light is reflected by the aluminum surface, and a part of it passes through the original path, passes through the slit, and enters the absorption through the mirror. cup. The light emitted from the absorption cup is then incident on the photocell through the light gate to generate a corresponding current, and the corresponding scale value is indicated by the ammeter. Shanghai Chuangsai Technology provides dual-beam UV-Vis spectrophotometer E52-UV1900PC, commodity number: E52-UV1900PC-table, inquiry.

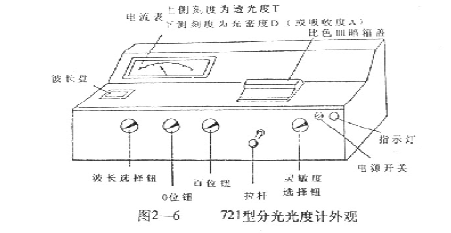

The dispersing prism is mounted on a rotatable disc, and the wavelength selector button is rotated to deflect the light, so that different wavelengths of light pass through the slit to form a monochromatic parallel light of a certain wavelength. At the same time, the wavelength disk is also rotated to indicate the wavelength number. This type of spectrophotometer gives a wavelength in the range of 360-800 nm, which is sensitive and suitable between 410-710 nm. The method of use is as follows (see Figure 2-6 for each adjustment site). Shanghai Chuangsai Technology provides UV-visible spectrophotometer E52-UV759CRT, commodity number: E52-UV759CRT-å°, inquiry.

1. The sensitivity selection button is placed in the “1†position (if the “0†is not adjusted, the higher file is selected).
2. Turn the wavelength selector to select the desired wavelength.
3. Turn on the power (the indicator light is on).
4. Uncover the cuvette cover and turn the “0†button to align the meter pointer with T=0.
5. Place the cuvette cup on the cuvette holder, make the blank tube face the light path, cover the cuvette cover, turn the “Hundreds†button to adjust the meter pointer to point A=0 (T=100) ).
6. Pull the lever of the cuvette holder to make the measuring cup enter the optical path, and quickly read the absorbance value from the meter and record. During the reading process, push the lever back to the original position at any time, make the blank cup enter the optical path, and turn the “hundred button†to return the pointer to A=0.
7. After the color is complete, turn off the power switch, remove the cuvette, cover the cuvette cover, clean the cuvette and dry.
8. Precautions
(1) Photoelectric colorimeter is a precision instrument, which should be carefully used and protected from shock, moisture and corrosion.
(2) The quality of the cuvette has a great influence on the absorbance reading. Keep the cuvette clean and protect the transparency of the optical surface. Do not hold the optical surface or contact the optical surface with a rough object. The liquid should be in an appropriate amount and should not be overfilled. The liquid on the outer wall of the cuvette should be wiped dry with a lens to prevent corrosion of the instrument and affect readings. If the colorimetric liquid is strong acid and alkali, it should be colorimetric as soon as possible to prevent damage to the cuvette. Shanghai Chuangsai Technology provides visible spectrophotometer E52-722PC, commodity number: E52-722PC-table, inquiry.
(3) The colorimetric time should be shortened as much as possible to prevent fatigue of the photovoltaic system. If continuous use is required, the middle should be temporarily suspended to keep it away from light.
(2) UV-754 spectrophotometer
This is a higher spectrophotometer for measuring the absorption spectrum in the ultraviolet to infrared region (200-1000 nm). The optical part of this instrument is similar to the 721 spectrophotometer, but it uses a quartz prism as a monochromator, and has two sources of tungsten and hydrogen arc lamps. The electrical part of the 754 spectrophotometer is more complex (Figure 2-7). After the photocurrent is amplified by the amplification circuit, the obtained sample signal becomes a value proportional to the light transmittance. Thereafter, zero adjustment, conversion logarithm, concentration calculation, print data, and the like are all performed by the microprocessor. How to use the instrument
1, test preparation
(1) Before turning on the power switch, check if the shade is placed in the sample chamber.
(2) The sample tank is placed in the "reference" position.
(3) Connect the power switch (if the wavelength works at 200-360nm, press the xenon lamp trigger button). (See Figure 2-7)
(4) After the display shows 754, and then displays as 100.0, it indicates that the instrument has passed the self-test procedure.
(5) The test is started 30 minutes after the instrument is warmed up.
2, test
(1) After the digital display is 100.0, it is stable for 2-3 seconds, and the sample tank can be placed in the "sample" position for testing. After the first data has been printed, the sample slot can be placed in the second "sample" position test. Shanghai Chuangsai Technology provides E52-UV756CRT scanning UV spectrophotometer, product number: E52-UV756CRT-table, inquiry.
(2) When it is necessary to change the wavelength, the sample slot must be placed in the "reference" position to re-adjust the fullness.

Common vocabulary
Spectrophotometry
Spectrophotometer Spectrophotometer
Absorption Spectrum
Ultraviolet Ultraviolet
Incident Light of Intensity of the Incident Light
