One of the most innovative developments in the further fine processing of printed products is the effect finishing based on composite technology. These effects are finished by developing the surface tension interaction between different glazing systems (UV / oil-based glazing oil). In this way, special effects of haptics can be achieved and complex and exquisite local glazing can be arranged according to the actual situation, so as not to limit the creativity involved.
Printing machine configuration:
Rapida 106-6 + glazing unit, extended two-page paper collecting device.
Printing unit 1-6: conventional ink roller

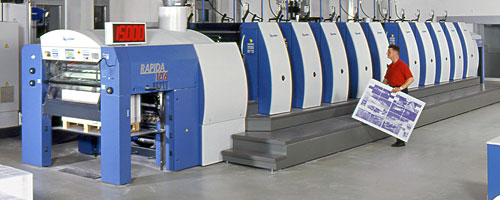

KBA Rapida 106
KBA VariDry drying device technology:
-2 UV inter-unit drying devices, each equipped with a 200-watt / cm lamp tube-Each printing unit is equipped with joint accessories for inter-unit drying devices-Extended delivery with infrared and hot air dryer Device-3 UV drying device polishing units placed at the end of each 200 watts / cm: cavity doctor equipped with anilox rollers, alternately used for UV / water-based polishing anilox rollers: cross hatch, 100 lines Cm, the absorption capacity is 12 cubic centimeters per square meter
Exquisite compound effect

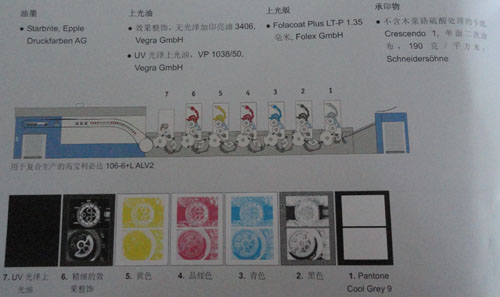

Production technology:
1st printing unit: Pantone Cool Grey 9 Hybrid
2nd-5th printing unit: composite overprinting primary colors 6th printing unit: oil-based plus printing bright oil, part of the glazing unit drying device: working in the 2nd and 5th printing units Varnishing oil, full-length varnishing extended paper collection device: infrared and hot air drying device is turned off and placed in the last UV drying device to work
The composite ink is used in the first to fifth units, and is cured by the inter-unit drying device that is arranged behind the second and fifth printing units to work. The sixth printing unit is used to apply oil-based brightening oil with a surface tension lower than that of the composite ink in a partially glazed manner. Subsequently, a full-scale UV gloss glazing is carried out on the wet printing varnish, and cured by the final UV drying device placed in the paper collecting device.
The non-image part of the glazed version used in the sixth unit together with UV varnish produces a high-gloss local finish. On the other hand, the wet printing bright oil carried in the image part of the printing plate interacts with the UV varnish. Subsequent UV curing in the take-up device produces a finely structured effect in these areas. The registration system of the sixth printing unit ensures accurate registration of even very fine parts.
