IPEmotion can send CAN messages and send .asc message signals through the CAN card connected to the computer. If the CAN card is connected to the CAN-to-AO module, the analog output can be controlled. Only the professional version and the development version of IPEmotion have the function of message generator. The following describes the specific configuration steps:

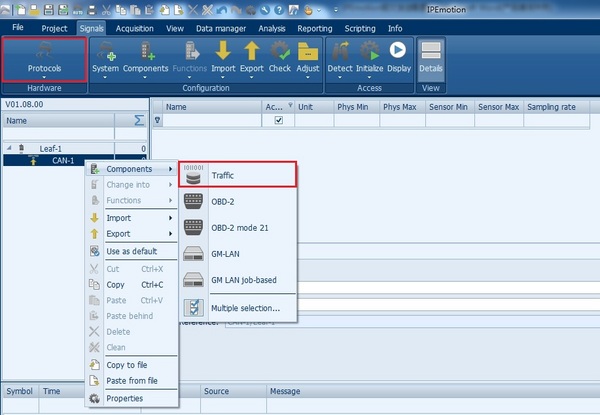

1. Hardware (hardware) is selected as Protocols (protocols), click the CAN channel right-click> Components (Component)> Traffic.

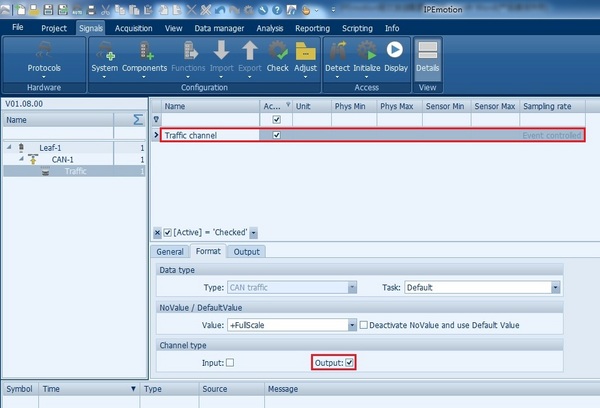

2. Click Traffic channel, and click Format> Channel type> Output.

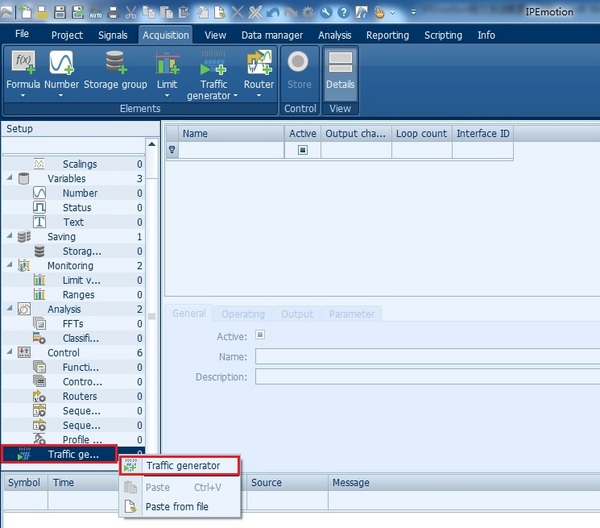

3. On the Acquisition interface, click Traffic generator, and right-click Traffic generator.

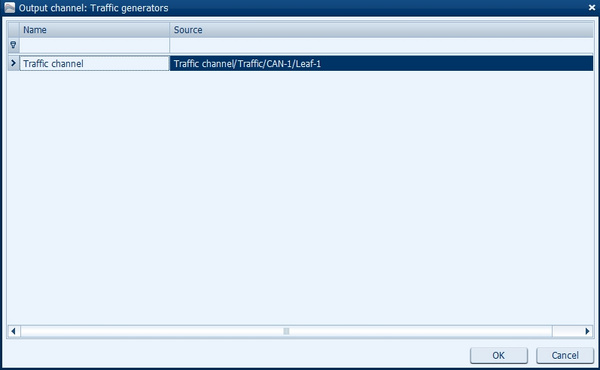

4. A dialog box pops up, select the output channel Traffic channel.

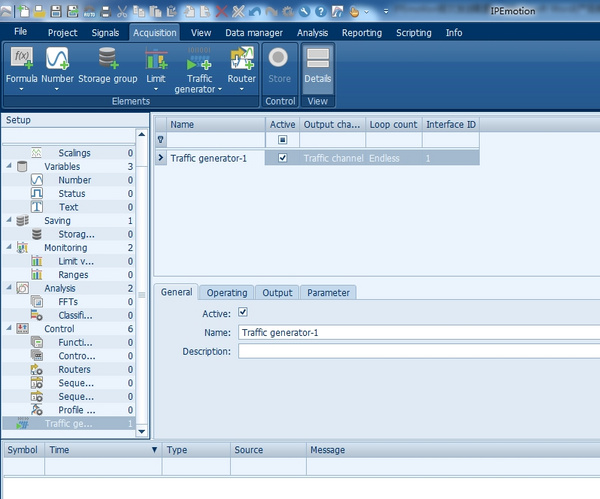

5. The configuration interface after selection is as follows.

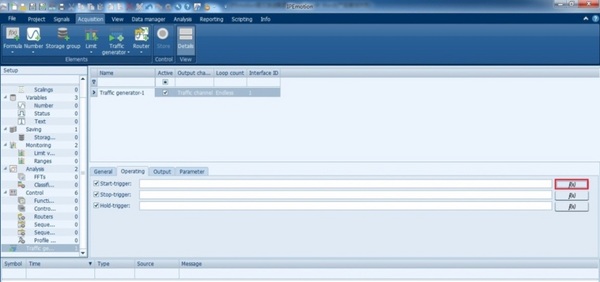

6. Click the Operating interface to set the start trigger, stop trigger, and hold trigger conditions.

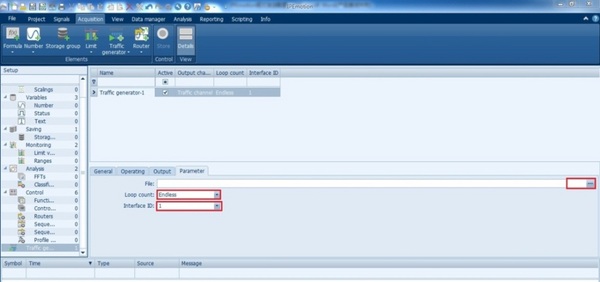

7. Click on the Parameter interface, File is the message file to be sent, Loop count is the number of cyclic transmissions, and Interface ID sets the corresponding interface ID message to be sent.
